'Stockton' Power Meter
A simple means of checking whether Transmitters and
Antennas were working properly was required. For outside broadcasts in particular
there is always the question as to whether the Antenna is resonant.
A commercial Power/VSWR meter is the obvious solution here but
not everyone understands VSWR and I wanted to explore something different.
The ‘Stockton’ Power Meter is well known in the industry, named after
David Stockton who popularized the concept through Amateur Radio Press. This Meter
consists of a true 4 Port Hybrid which allows the simultaneous measurement of
Transmitted and Reflected Power.

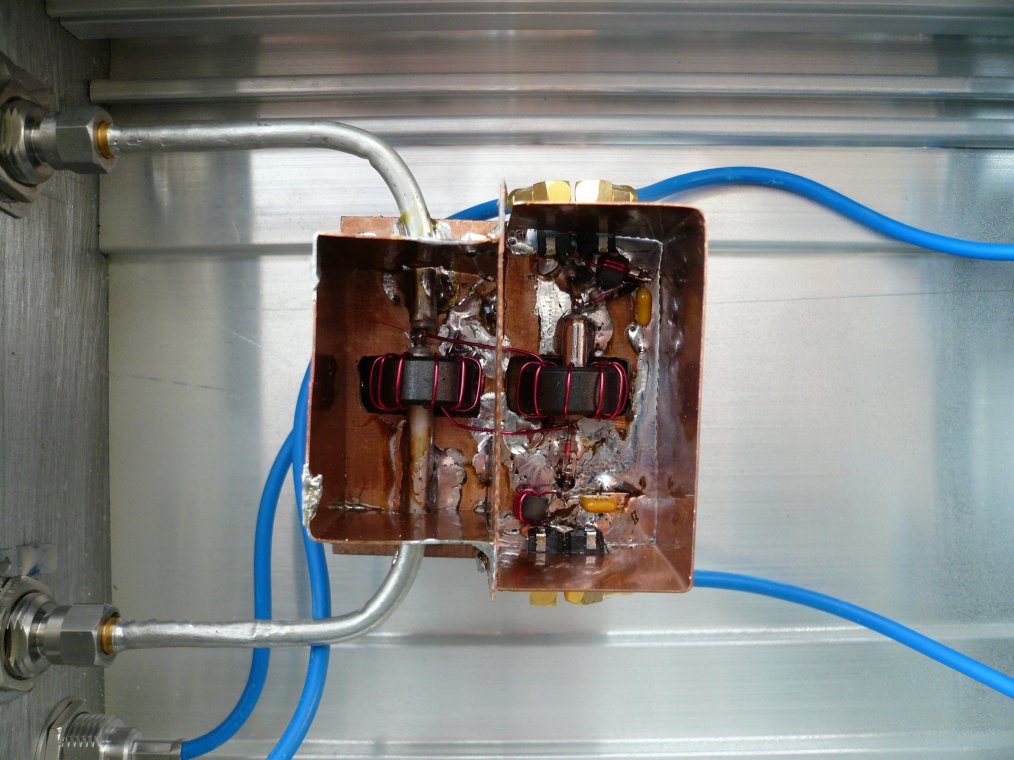

The Hybrid is seen the picture below, it is made up with two
transformers consisting of some Semi-Rigid cable, Enameled copper wire and a couple of Ferrite cores.

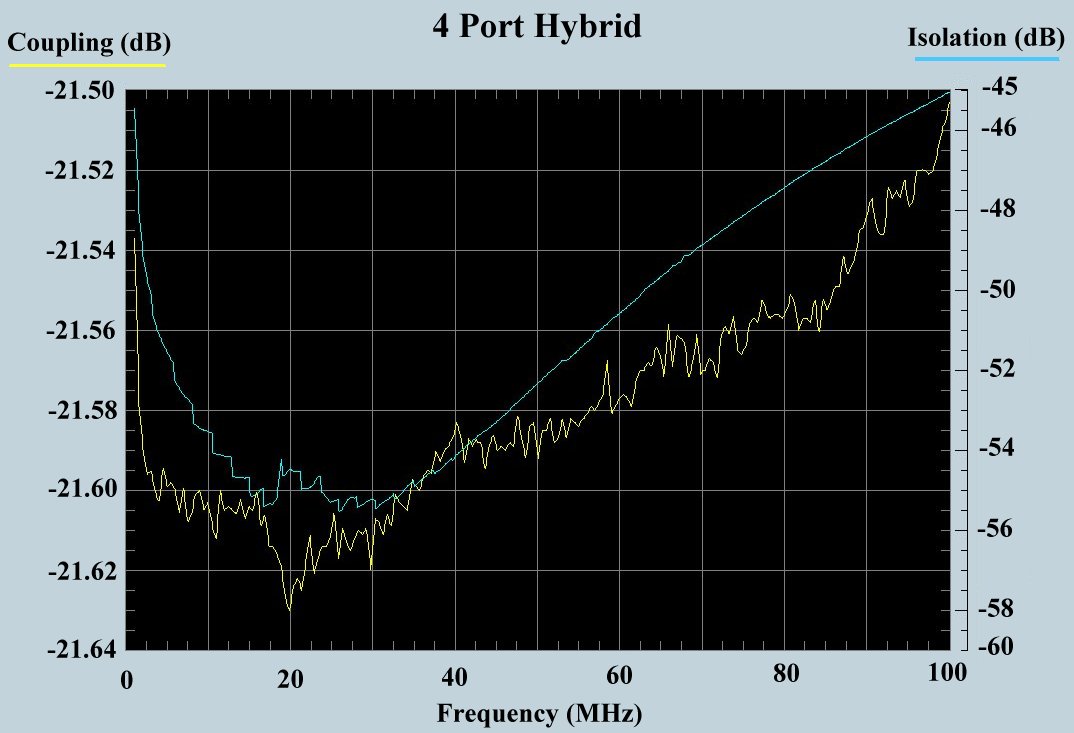

The performance of the Hybrid over 100MHz is shown in the graph
below. The isolation is about 30dB with respect to the coupled path at 50MHz
which is good enough for this application.
The coupling is not far off what is expected by the 12:1 transformer
ratio chosen. I am only operating at 50MHz but if calibrated at
this point the error over 1.5-75MHz is only ±0.02dB.
The outputs of the Hybrid are Rectified and applied to two meter's which
are calibrated with a Power scale up to 10W.
The complete unit uses N type connectors for the RF in and out and also
has BNC outputs from the Detector’s. These can be connected to a Voltmeter for accurate
measurements or they could be used to automatically detect a high level of reflected
power – this could be used to switch the PA off in a Transmitter for example.
